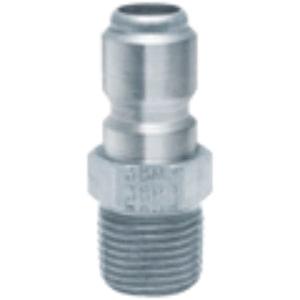

ZSi-Foster 38-4 Plug, 3/8 in Quick-Disconnect x 1/8 in MNPT, Steel
NASHVILLE, TN
Available at All Branches
ZSi-Foster 4 Series 3/8 x 1/8 in steel MPT plug sleeve-type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug. Interchangeable with ANSI/NFPA T3.20.14-1990 and ISO 6150-B.
ZSi-Foster Plug, Series: 4 Series, Plug Fitting, 3/8 in Connection Size 1, Quick-Disconnect Connection Type 1, 1/8 in Connection Size 2, MNPT Connection Type 2, Quick-Disconnect|MNPT Connection Type, Steel, Steel Material Construction, 5/8 in Hex, 1/8-27 Thread, 1.69 in L, 300 psig Maximum Operating Pressure, -40 to 250 deg F Operating, Additional Information: 1-Way Shut-Off, Buna-N Seal, Stainless Steel Ball 4-Pin Locking Device
| Additional Information | : | 1-Way Shut-Off, Buna-N Seal, Stainless Steel Ball 4-Pin Locking Device |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 1/8 in |
| Connection Type 1 | : | Quick-Disconnect |
| Connection Type 2 | : | MNPT |
| Connection Type | : | Quick-Disconnect|MNPT |
| Dimensions | : | 1.69 in L |
| Fitting Type | : | Plug |
| Hex Size | : | 5/8 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 300 psig |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | 4 Series |
| Thread Size | : | 1/8-27 |
Full Engineering Drawing
