ZSi-Foster 150FS QD12-S46
  1. pin-int

ZSi-Foster 150FS QD12-S46

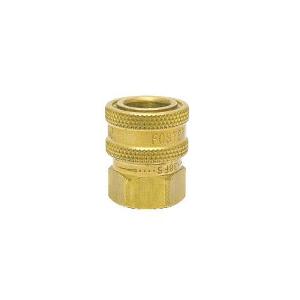

ZSi-Foster FST Series 150FS Straight Through Socket, 1-1/2 in Quick-Disconnect x 1-1/2 in FNPT, Brass

  • Manufacturer: Ideal Clamp Products, Inc
  • Brand Name: ZSi-Foster
  • Part#: QD12-S46
  • MPN: 150FS
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

ZSi-Foster Straight Through Socket, Series: FST Series, Socket Fitting, 1-1/2 in Connection Size 1, Quick-Disconnect Connection Type 1, 1-1/2 in Connection Size 2, FNPT Connection Type 2, Quick-Disconnect|FNPT Connection Type, Brass, Brass Material Construction, 2.5 in L x 1.6 in W x 1.6 in H, -40 to 250 deg F Operating, Additional Information: Buna-N Seal

Additional Information      :      Buna-N Seal
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Quick-Disconnect
Connection Type 2      :      FNPT
Connection Type      :      Quick-Disconnect|FNPT
Dimensions      :      2.5 in L x 1.6 in W x 1.6 in H
Fitting Type      :      Socket
Material Construction      :      Brass
Material      :      Brass
Operating Temperature      :      -40 to 250 deg F
Series      :      FST Series
  • Standard industrial interchange design, most widely used in industry
  • Within each series, only sockets and plugs of the same size will couple together
  • Manual - socket sleeve must be manually retracted to connect and disconnect operation
