Tigerflex® UV1-200X50 HSFLEX-UREVAC-1-200
  1. pin-int

Tigerflex® UV1-200X50 HSFLEX-UREVAC-1-200

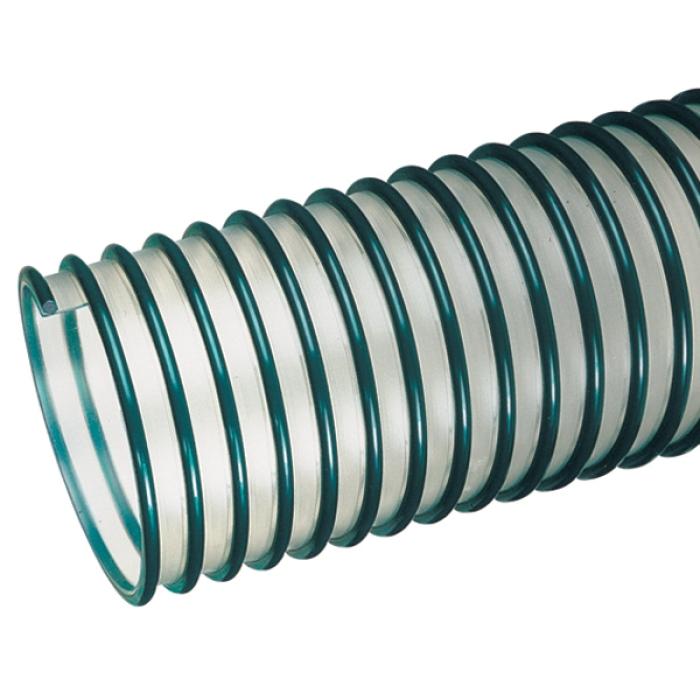

Tigerflex® UV1™ Series UV1-200X50 Ducting/Material Handling Hose, 2 in Nominal, 50 ft L, 15 psi, Polyurethane Tube

  • Manufacturer: KURIYAMA OF AMERICA, INC
  • Brand Name: Tigerflex®
  • Part#: HSFLEX-UREVAC-1-200
  • MPN: UV1-200X50
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: FT

Tigerflex® Ducting/Material Handling Hose, Duct/Material Handling Hose, 2 in Nominal, 2 in Inside Diameter, 2.39 in Outside Diameter, 50 ft Length, Polyurethane Tube, Polyurethane Cover, Rigid PVC Helix Reinforcement, Transparent Hose, 1-1/2 in Bend Radius, 15 psi, Resistance Properties: Oil, Temperature High: 150 deg F, Temperature Low: -40 deg F

Bend Radius      :      1-1/2 in
Cover Material      :      Polyurethane
Hose Color      :      Transparent
Hose Type      :      Duct/Material Handling
Inside Diameter      :      2 in
Length      :      50 ft
Nominal Size      :      2 in
Outside Diameter      :      2.39 in
Pressure Rating      :      15 psi
Reinforcement      :      Rigid PVC Helix
Resistance Properties      :      Oil
Series      :      UV1™ Series
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
Tube Material      :      Polyurethane
  • Durable lightweight polyurethane tube designed for dry applications where abrasion is a factor
  • Transparent construction, "see-the-flow" allows for visual confirmation of material flow
  • Easy slide rigid helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces and around corners, easy-to-handle
  • Cold Flex™ materials hose remains flexible in severe sub-zero temperatures
  • Oil-resistant polyurethane tube resists most animal and petroleum-based oils
  • Phthalate-free
  • Made in USA
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Kuriyama-Couplings_UV1-200X50_Catalog.pdf
