Tigerflex® 2001-700X20 HSMAT-2001 KURI-700
  1. pin-int

Tigerflex® 2001-700X20 HSMAT-2001 KURI-700

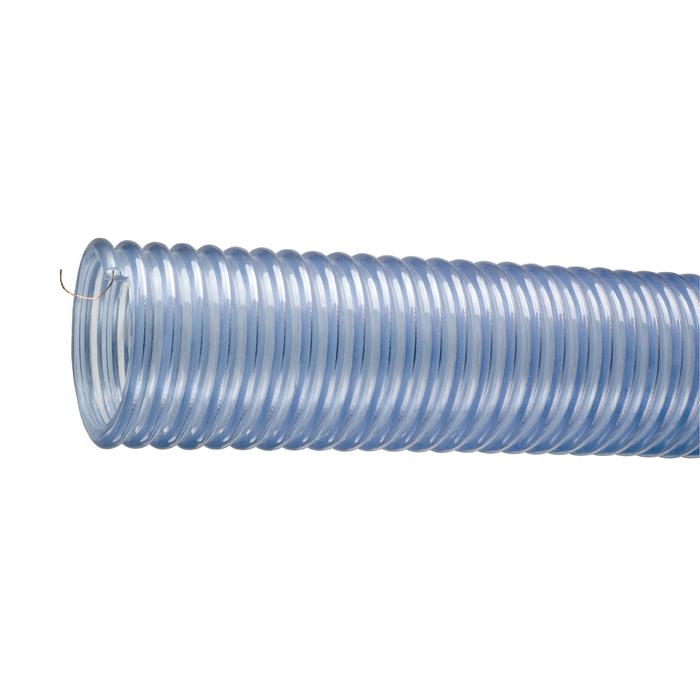

Tigerflex® 2001™ Series 2001-700X20 Hose, 20 ft L, 15 psi, 30 psi, Polyurethane Tube, Transparent

  • Manufacturer: KURIYAMA OF AMERICA, INC
  • Brand Name: Tigerflex®
  • Part#: HSMAT-2001 KURI-700
  • MPN: 2001-700X20
  • UPC: 822353021972
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: FT

Tigerflex® Hose, Series: 2001™ Series, Food-Grade, Heavy-Duty, Material Handling Hose, 7 in Inside Dia, 8.08 in Outside Dia, 20 ft Length, Polyurethane Tube, PVC Cover, Grounding Wire/PVC Helix Reinforcement, Transparent Hose Color, 30 in Bend Radius, 15 psi, 30 psi, Abrasion, Oil Resistance Properties, 150 deg F Temperature High, -4 deg F Temperature Low, Additional Information: 25 to 28 inHg Vacuum Rate

Additional Information      :      25 to 28 inHg Vacuum Rate
Bend Radius      :      30 in
Cover Material      :      PVC
Hose Color      :      Transparent
Hose Type      :      Food-Grade, Heavy-Duty, Material Handling
Inside Diameter      :      7 in
Length      :      20 ft
Outside Diameter      :      8.08 in
Pressure Rating      :      15 psi, 30 psi
Reinforcement      :      Grounding Wire/PVC Helix
Resistance Properties      :      Abrasion, Oil
Series      :      2001™ Series
Temperature High      :      150 deg F
Temperature Low      :      -4 deg F
Tube Material      :      Polyurethane
  • Designed for dry applications where severe abrasion is a factor
  • Provides for longer hose life and lower operating costs versus rubber or PVC hoses
  • Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • It's embedded within the rigid helix to prevent contamination of transferred materials
  • Allows for visual confirmation of material flow
  • Convoluted outer cover provides increased hose flexibility
  • Resists most animal and petroleum-based oils
  • Made in USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Tigerflex_2001_500X60_Specification_Sheet.pdf
