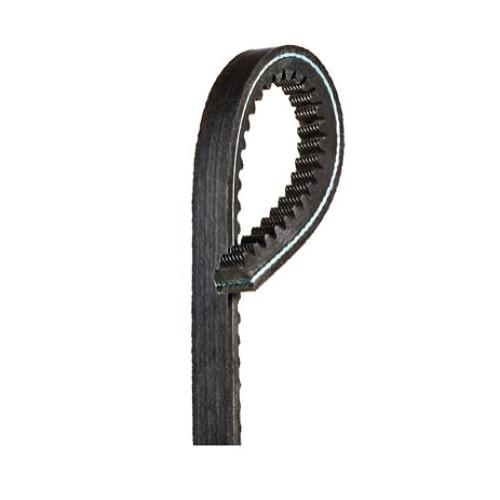

Gates® BX39 BLBX39

Gates® Tri-Power® V-belt is built for superior performance on heavy-duty drives of classical cross-section. The raw edge construction and special notch design makes the Tri-Power® belt especially suited for drives requiring small diameter pulleys and back idlers. The patented ethylene EPDM compound construction allows the belt to resist cracking and handle extreme temperatures.

Gates® Tri-Power® Notched V-Belt, Series, Model, Section Size BX, Outside Length 42.28, Top Width 0.62 in, Thickness 0.44 in, Pitch Length in, Rib Width, Angle 40, Load Capacity deg, Pulley Diameter, Number of Ribs, Construction Molded, Reinforced Material, Resists Aging, Crack, Heat, Oil, Ozone, Sunlight, Weather, Material Ethylene, Temperature Rating -58 to 248, Color deg F, Finish, Domestic/Import, Suitable For Use With, Additional Information

• Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip and wear
• Cross oriented fiber loaded rubber compound for flexibility and stability
• Gates patented EPDM rubber compound technology
• Gates curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
• Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
• The flex-weave cover is a patented construction for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Gates_AX19_Specification_Sheet.pdf
