Gates® 90935060 BL5/B60

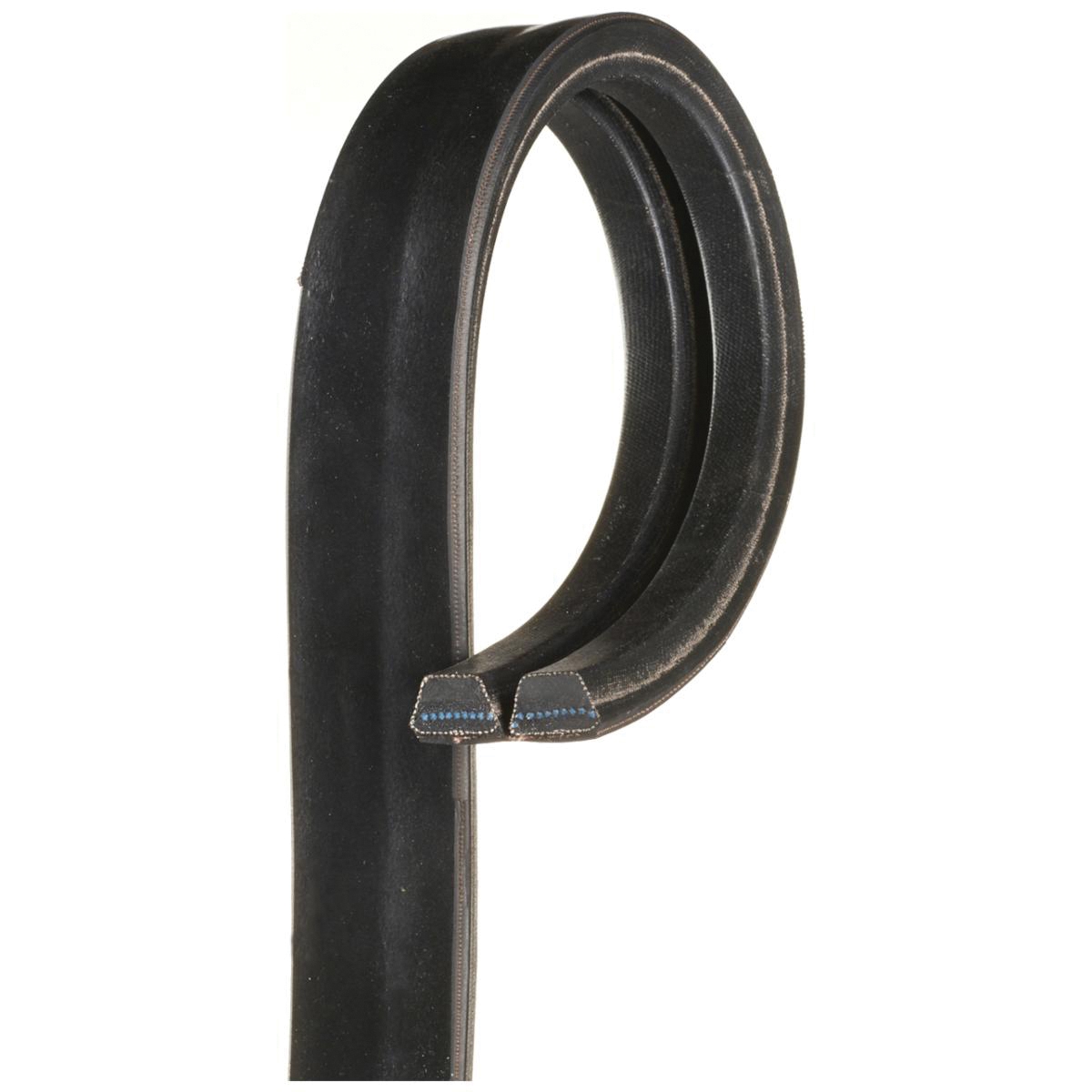

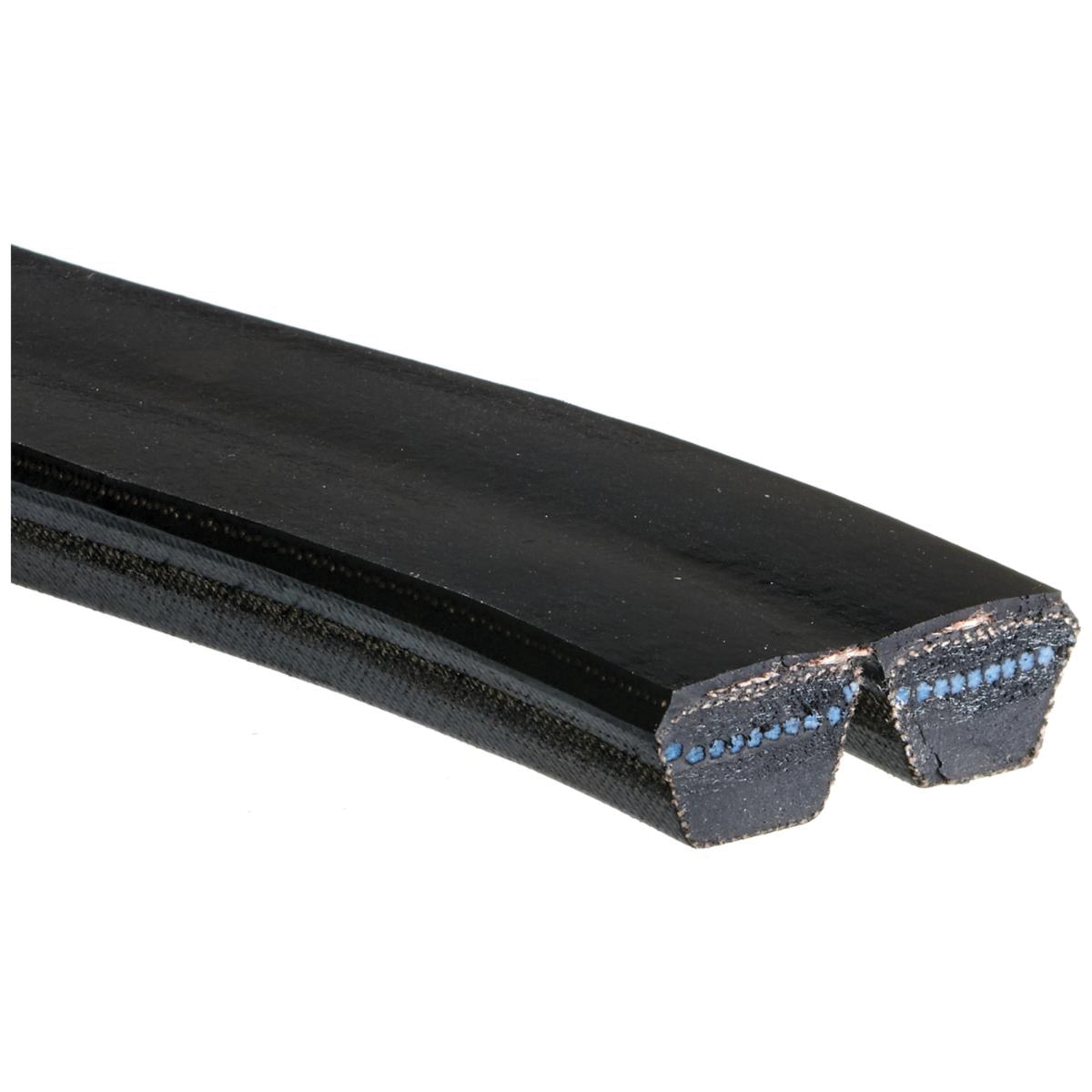

Gates® Hi-Power® II PowerBand® 90935060 V-Belt, B Section, 63 in L Outside, 3.66 in W Top, 0.47 in Thick, SBR

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part#: BL5/B60
  • MPN: 90935060
  • UPC: 072053285598
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

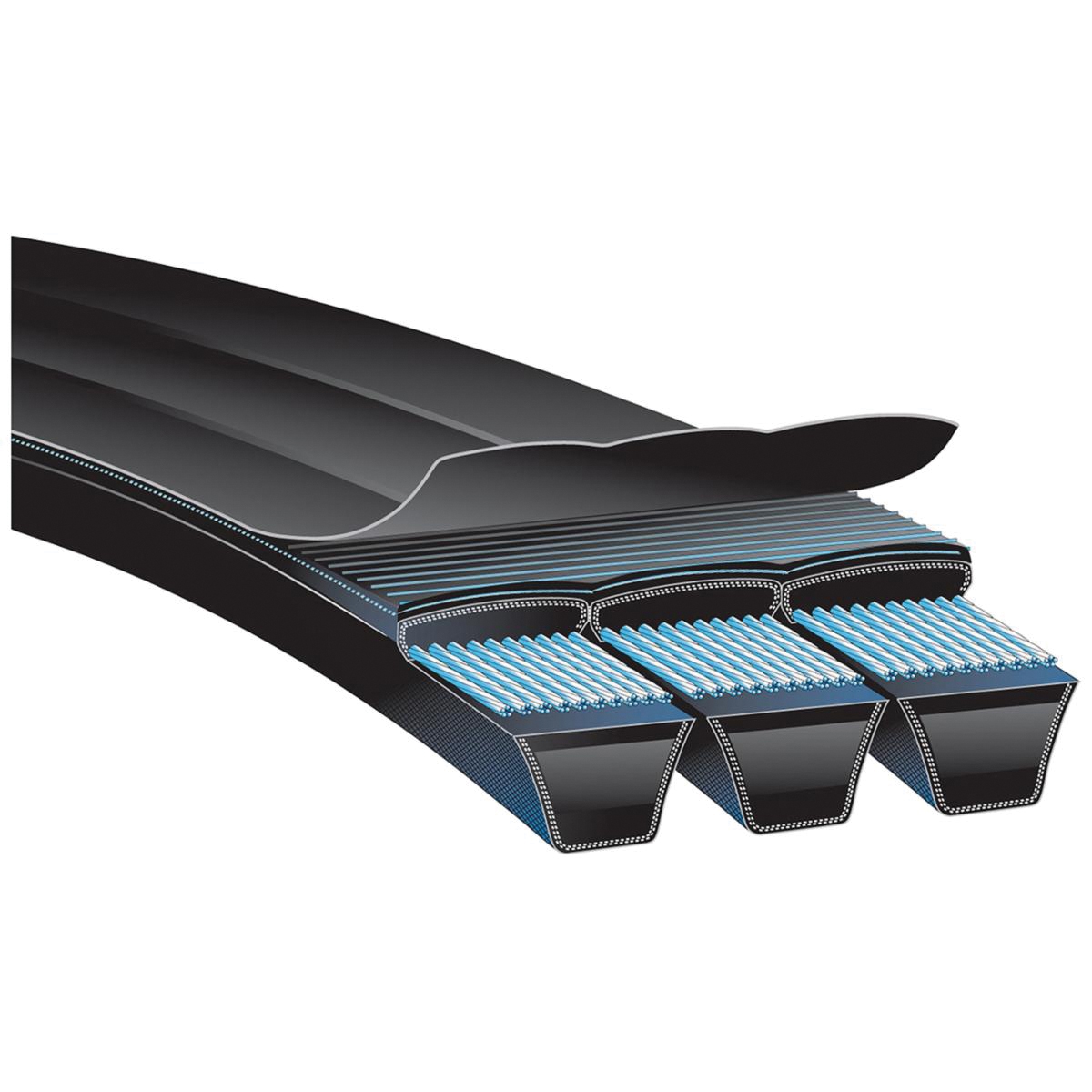

The wrapped classical section Hi-Power® V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® belt provides superior strength to prevent dishing and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Gates® V-Belt, Series: 9093 Series, B Section Size, 63 in Outside Length, 3.66 in Top Width, 0.47 in Thickness, 21/32 in Rib Width, 40 deg, 5 Ribs, Banded Construction, Polyester Reinforced Material, Resists: Heat, Oil, SBR, -22 to 140 deg F, Black, Import, Additional Information: Smooth Belt Back Side, Smooth Belt Inside, Single Sided, 62.9 in L Effective

Additional Information      :      Smooth Belt Back Side, Smooth Belt Inside, Single Sided, 62.9 in L Effective
Angle      :      40 deg
Color      :      Black
Construction      :      Banded
Domestic/Import      :      Import
Material      :      SBR
Number of Ribs      :      5
Outside Length      :      63 in
Reinforced Material      :      Polyester
Resists      :      Heat, Oil
Rib Width      :      21/32 in
Section Size      :      B
Series      :      9093 Series
Temperature Rating      :      -22 to 140 deg F
Thickness      :      0.47 in
Top Width      :      3.66 in
  • Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
  • Vulcanized flex bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
  • Flex-Weave™ oil and heat-resistant cover protects the belt core from the toughest environments
  • All sizes meet Gates® V80® system matching tolerances
  • Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave™ cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
  • Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
  • Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
  • Savings in drive space and weight due to high transmission efficiency
  • High stability and smooth running on the toughest drives
  • Important design economies possible
  • Better resistance to vibrations
