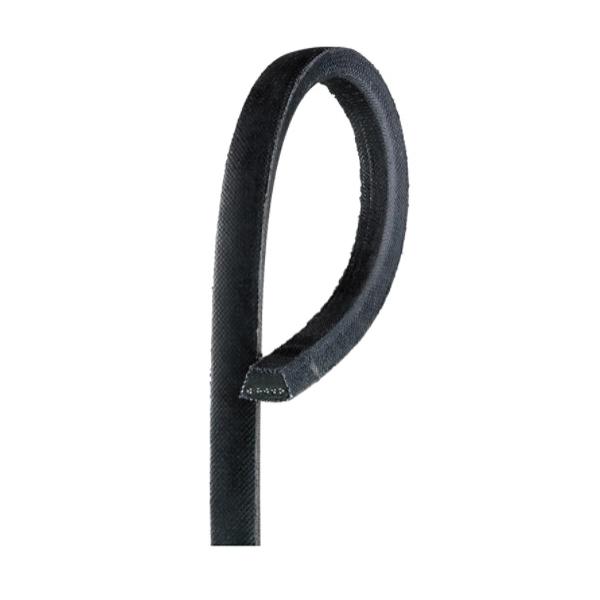

Gates® Truflex® 8400 Series 84002220 V-Belt, 4L Section, 21.96 in L Outside, 1/2 in W Top, 5/16 in Thick
NASHVILLE, TN
Available at All Branches
Truflex® belts are engineered with superior length stability for minimal take-up requirements, perfect for all industrial, light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers. Flex-bonded cords are strongly secured to the belt's body for equal load distribution and absorption of bending stress without cord deterioration. Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life. The Flex-Weave® Cover is constructed for longer cover life, providing the belt's core with extended protection from oil, dirt and heat.
Gates® Truflex® V-Belt, Series: 8400 Series, 4L Section, 21.96 in Outside Length, 1/2 in Top Width, 5/16 in Thickness, 38 deg Angle, Resists: Dirt, Heat, Oil, Gates Proprietary Compound
| Angle | : | 38 deg |
| Material | : | Gates Proprietary Compound |
| Outside Length | : | 21.96 in |
| Resists | : | Dirt, Heat, Oil |
| Section Size | : | 4L |
| Series | : | 8400 Series |
| Thickness | : | 5/16 in |
| Top Width | : | 1/2 in |
