Gates® 74800049 TL GATES 74800049

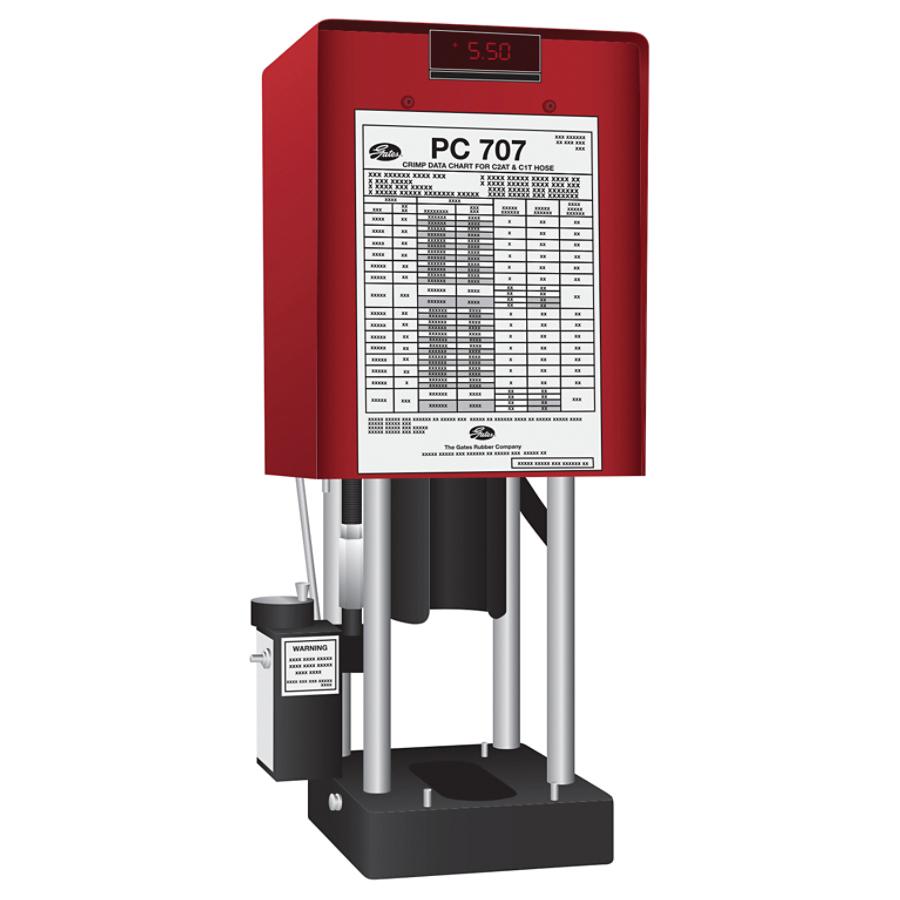

Gates® Power Crimp® 707 is the most reliable, yet simplest crimper made. It was the first crimper with electronic digital readout to indicate gauge setting. The toughest part about using the 707 is pushing a button. It takes just a few seconds to make factory quality hose assemblies.

Gates® Crimper, 72-1/2 ton Crimp Force, 3/16 to 1-1/4 in Maximum Crimp Range, 115 V, 26-1/2 in H x 13 in W x 12 in D, Additional Information: Red Color, Economy/Shop Crimper Class, Vertical Orientation, Standard Technical Level

• Electronic readout to indicate crimp set point
• Crimps most hydraulic hose from low pressure return lines to extremely high pressure spirals, from 3/16 to 1-1/4 in ID
• Crimps straight and bent tube couplings, plus 45 deg and 90 deg block types
• Can also be adapted for use as a power swager
• Standard PC707 without die sets wired for 115 V (includes die back-up ring and a no-notched cone)
• (100) assemblies per hour production rate (using 1/2 in ID two-wire straight thread assemblies)
• Swage capable
• Without die sets
