Gates® 730359265 HY12-14FJX

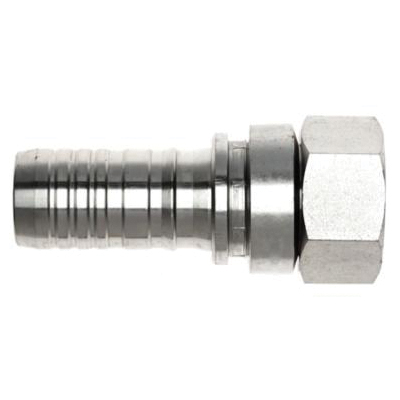

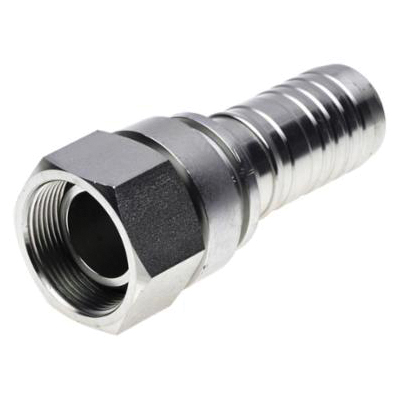

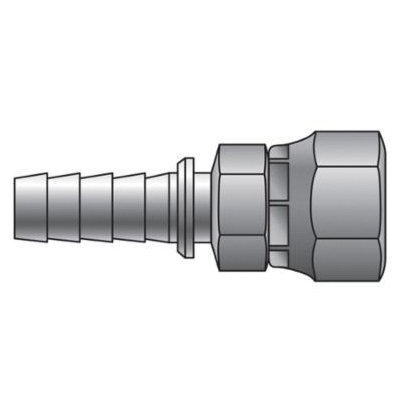

Gates® Power Crimp® 730359265 Coupling, 0.752 in Female 37 deg JIC Flare Swivel x 0.752 in, Steel

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part#: HY12-14FJX
  • MPN: 730359265
  • UPC: 072053138467
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

Gates® Coupling, Coupling Fitting, 0.752 in Connection Size 1, Female 37 deg JIC Flare Swivel Connection Type 1, 0.752 in Connection Size 2, Female 37 deg JIC Flare Swivel Connection Type 2, Female JIC Swivel|Female JIC Swivel Connection Type, 12 Hose Dash Size, 1.85 in Cut-Off Factor, Steel, Steel Material Construction, Zinc-Plated, 1-3/16-12 Thread, 3.543 in L, Additional Information: Standard Nose Seat, Mated Angle Seal Type

Additional Information      :      Standard Nose Seat, Mated Angle Seal Type
Connection Size 1      :      0.752 in
Connection Size 2      :      0.752 in
Connection Type 1      :      Female 37 deg JIC Flare Swivel
Connection Type 2      :      Female 37 deg JIC Flare Swivel
Connection Type      :      Female JIC Swivel|Female JIC Swivel
Cut-Off Factor      :      1.85 in
Dimensions      :      3.543 in L
Finish      :      Zinc-Plated
Fitting Type      :      Coupling
Hose Dash Size      :      12
Material Construction      :      Steel
Material      :      Steel
Thread Size      :      1-3/16-12
  • Power Crimp® stems and ferrules are designed for use with your Gates® hoses with a wide variety of couplings available for easy installation
  • Designed to perform with high and medium pressure hose
  • Zinc-plated carbon steel
