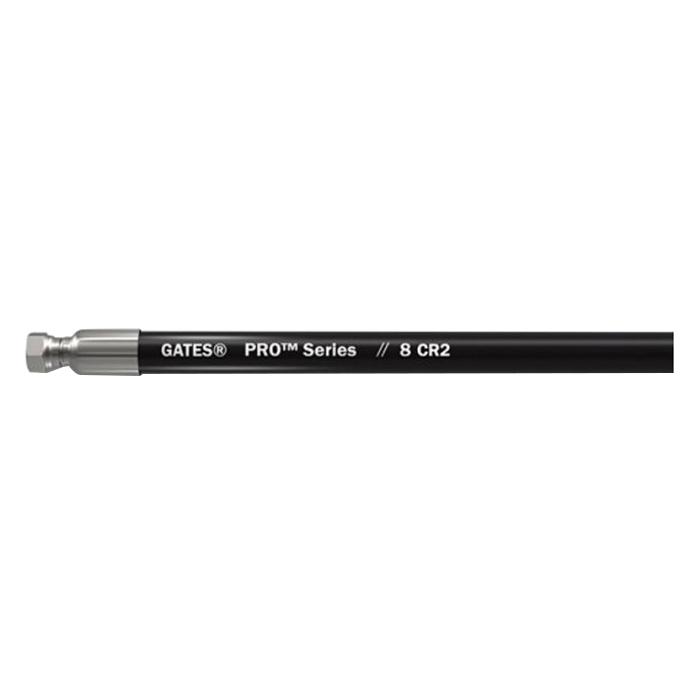

Gates® PRO™/CR2 Series 4657-8851 Braided Hydraulic Hose, 3/4 in Nominal, 3125 psi, Rubber Tube, Black
Available at NASHVILLE, TN
Available at All Branches
Gates® PRO™ Series CR2 variable pressure hydraulic hoses deliver performance and reliability in a two wire construction. Engineered for less demanding hydraulic applications, our line of professional-grade hoses are designed to balance product performance and investment for everyday uses. All sizes deliver consistent performance to SAE and EN industry specifications. Qualified with Gates® PRO™ Series and MegaCrimp® couplings.
Gates® Braided Hydraulic Hose, PRO™/CR2 Series, Braided Hydraulic Hose, 3/4 in Nominal, 12 Dash, 3/4 in Inside Diameter, 1.14 in Outside Diameter, Rubber Tube, SBR Cover, Two Braided High Tensile Steel Wire Reinforcement, Black Hose, 9-1/2 in Bend Radius, 3125 psi, Resistance Properties: Abrasion, Oil, Temperature High: 212 deg F, Temperature Low: -40 deg F
| Bend Radius | : | 9-1/2 in |
| Cover Material | : | SBR |
| Dash Size | : | 12 |
| Hose Color | : | Black |
| Hose Type | : | Braided Hydraulic |
| Inside Diameter | : | 3/4 in |
| Nominal Size | : | 3/4 in |
| Outside Diameter | : | 1.14 in |
| Pressure Rating | : | 3125 psi |
| Reinforcement | : | Two Braided High Tensile Steel Wire |
| Resistance Properties | : | Abrasion, Oil |
| Series | : | PRO™/CR2 Series |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Rubber |
Specification Sheet
