Gates® 4657-4534 HY20M2T
  1. pin-int

Gates® 4657-4534 HY20M2T

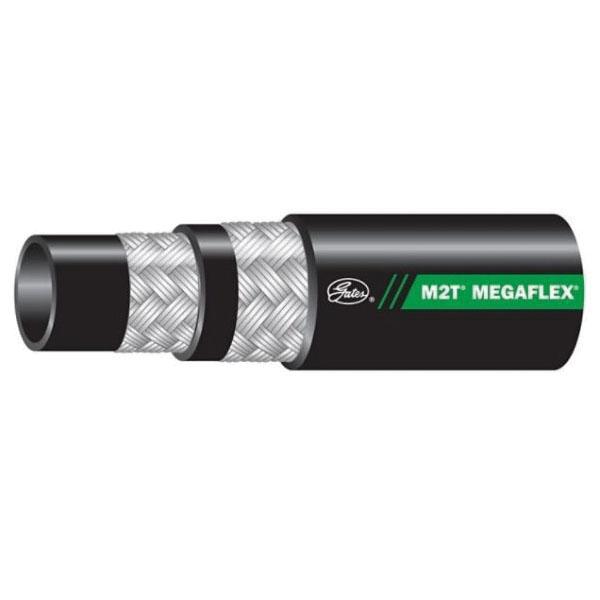

Gates® M2T® Series 4657-4534 Braided Hydraulic Hose, 1-1/4 in Nominal, 2300 psi, Rubber Tube, Black

  • Manufacturer: Gates Corp
  • Brand Name: Gates®
  • Part#: HY20M2T
  • MPN: 4657-4534
  • UPC: 770075604471
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: FT

Gates® Braided Hydraulic Hose, M2T® Series, Braided Hydraulic Hose, 1-1/4 in Nominal, 20 Dash, 1-1/4 in Inside Diameter, 1.67 in Outside Diameter, Rubber Tube, Nitrile Cover, Two Braided High Tensile Steel Wire Reinforcement, Black Hose, 8.3 in Bend Radius, 2300 psi, Resistance Properties: Abrasion, Oil, Weather, Temperature High: 212 deg F, Temperature Low: -40 deg F

Bend Radius      :      8.3 in
Cover Material      :      Nitrile
Dash Size      :      20
Hose Color      :      Black
Hose Type      :      Braided Hydraulic
Inside Diameter      :      1-1/4 in
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.67 in
Pressure Rating      :      2300 psi
Reinforcement      :      Two Braided High Tensile Steel Wire
Resistance Properties      :      Abrasion, Oil, Weather
Series      :      M2T® Series
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Tube Material      :      Rubber
  • Easy to route and to install in tight areas
  • M2T® hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii
  • Meets flame-resistant acceptance designation MSHA 2G
  • M2T® hose has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses
  • Tighter bend radius reducing hose assembly length to save money
  • Validated with MegaCrimp®
  • Black, oil, abrasion and weather-resistant, synthetic rubber (modified nitrile - Type C2) with color-coded lay line cover
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Gates_4657_0222_Specification_Sheet.pdf
