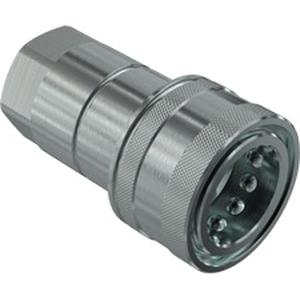

Faster NV 38-38SAE F Coupling, 3/8 in Female x 9/16 in Female SAE ORB, Steel
Available at NASHVILLE, TN
Available at All Branches
Faster Coupling, Series: NV Series, Coupling Fitting, 3/8 in Connection Size 1, Female Connection Type 1, 9/16 in Connection Size 2, Female SAE ORB Connection Type 2, Female|Female ORB Connection Type, Steel, Steel Material Construction, 9/16-18 Thread, 0.94 in Hex, 2.34 in L, 30 MPa Maximum Operating Pressure, -25 to 125 deg C Operating, Additional Information: 50 Lpm Flow Rate
| Additional Information | : | 50 Lpm Flow Rate |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 9/16 in |
| Connection Type 1 | : | Female |
| Connection Type 2 | : | Female SAE ORB |
| Connection Type | : | Female|Female ORB |
| Dimensions | : | 2.34 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 0.94 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 30 MPa |
| Operating Temperature | : | -25 to 125 deg C |
| Series | : | NV Series |
| Thread Size | : | 9/16-18 |
Specification Sheet
