Faster NV 14-38SAE M QDNV14-38SAEM
  1. pin-int

Faster NV 14-38SAE M QDNV14-38SAEM

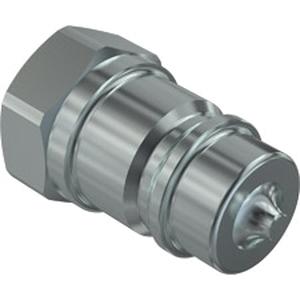

Faster NV 14-38SAE M Coupling, 1/4 in Male x 9/16 in Female SAE ORB, Steel

  • Manufacturer: Helios Technologies
  • Brand Name: Faster
  • Part#: QDNV14-38SAEM
  • MPN: NV 14-38SAE M
  • Qty. Interval: 1
  • loading Available at NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

Faster Coupling, Series: NV Series, Coupling Fitting, 1/4 in Connection Size 1, Male Connection Type 1, 9/16 in Connection Size 2, Female SAE ORB Connection Type 2, Male|Female ORB Connection Type, Steel, Steel Material Construction, 9/16-18 Thread, 3/4 in Hex, 1.4 in L, 35 MPa Maximum Operating Pressure, -25 to 125 deg C Operating, Additional Information: 15 Lpm Flow Rate

Additional Information      :      15 Lpm Flow Rate
Connection Size 1      :      1/4 in
Connection Size 2      :      9/16 in
Connection Type 1      :      Male
Connection Type 2      :      Female SAE ORB
Connection Type      :      Male|Female ORB
Dimensions      :      1.4 in L
Fitting Type      :      Coupling
Hex Size      :      3/4 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      35 MPa
Operating Temperature      :      -25 to 125 deg C
Series      :      NV Series
Thread Size      :      9/16-18
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Faster_NV_38_38SAE_F_Specification_Sheet.pdf
