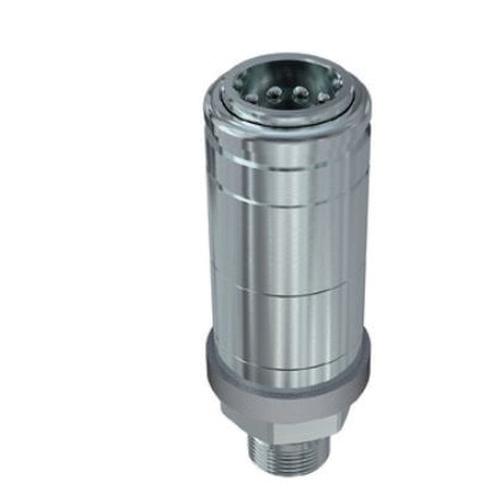

Faster 4SRPV081/22F H Coupling, 1/2 in Female Push-to-Connect Male Metric, Steel
Available at NASHVILLE, TN
Available at All Branches
Push-pull couplings, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241-1 part A interchange.
Faster Coupling, Coupling Fitting, 1/2 in Connection Size 1, Female Push-to-Connect Connection Type 1, Male Metric Connection Type 2, Push-Fit|Male Metric Connection Type, Steel, Steel Material Construction, M22x1.5 Thread, 1.26 in Hex, 4.43 in L, 25 MPa Maximum Operating Pressure, -25 to 125 deg C Operating, Additional Information: 70 Lpm Flow Rate
| Additional Information | : | 70 Lpm Flow Rate |
| Connection Size 1 | : | 1/2 in |
| Connection Type 1 | : | Female Push-to-Connect |
| Connection Type 2 | : | Male Metric |
| Connection Type | : | Push-Fit|Male Metric |
| Dimensions | : | 4.43 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 1.26 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 25 MPa |
| Operating Temperature | : | -25 to 125 deg C |
| Thread Size | : | M22x1.5 |
Specification Sheet
