DIXON V12F12-B QDV12F12-B
  1. pin-int

DIXON V12F12-B QDV12F12-B

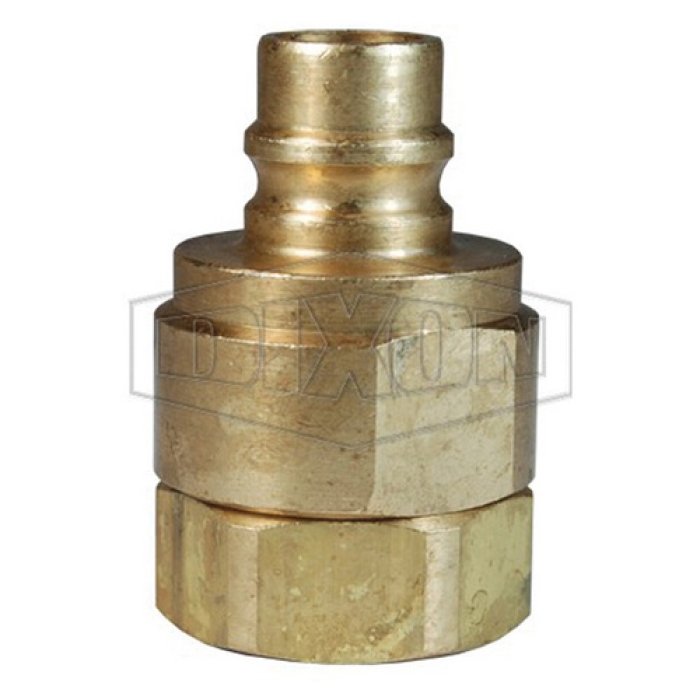

DIXON V Series V12F12-B Snap-Tite H/IH Interchange Valved Plug, 1-1/2 in Quick Disconnect x 1-1/2 in FNPTF, Brass

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QDV12F12-B
  • MPN: V12F12-B
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON Snap-Tite H/IH Interchange Valved Plug, Series: V, Fitting Type: Plug, Connection Size 1: 1-1/2 in, Connection Type 1: Quick Disconnect, Connection Size 2: 1-1/2 in, Connection Type 2: FNPTF, Material Construction: Brass, 1-1/2-11-1/2 Thread, 2-1/2 in Hex, 3.35 in L x 2.74 in OD, Maximum Operating Pressure: 350 psi, -40 to 250 deg F Operating

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      FNPTF
Connection Type      :      Quick-Disconnect|FNPT
Dimensions      :      3.35 in L x 2.74 in OD
Fitting Type      :      Plug
Hex Size      :      2-1/2 in
Material Construction      :      Brass
Material      :      Brass
Maximum Operating Pressure      :      350 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      V
Thread Size      :      1-1/2-11-1/2
  • General-purpose hydraulic quick connect provides superior flow characteristics with built-in reliability
  • Machined components are manufactured using solid bar stock
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
