DIXON HS100SS CPDIXON-HS100SS

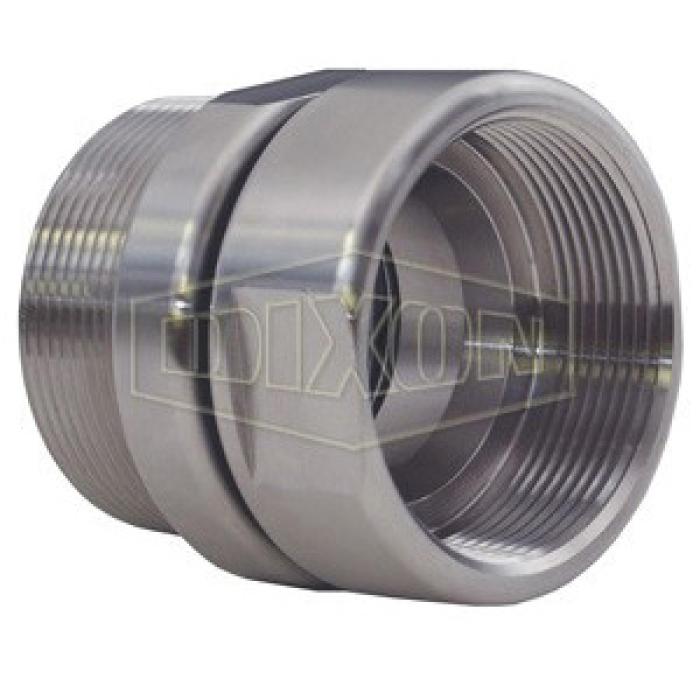

DIXON HS100SS Hose Swivel, 1 in MNPT x 1 in FNPT, Stainless Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: CPDIXON-HS100SS
  • MPN: HS100SS
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON Hose Swivel, Fitting Type: Swivel, Connection Size 1: 1 in, Connection Type 1: MNPT, Connection Size 2: 1 in, Connection Type 2: FNPT, Material Construction: 316 Stainless Steel, 68 mm L x 41 mm W, Maximum Operating Pressure: 150 psi, 300 deg F Operating

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      MNPT
Connection Type 2      :      FNPT
Connection Type      :      MNPT|FNPT
Dimensions      :      68 mm L x 41 mm W
Fitting Type      :      Swivel
Material Construction      :      316 Stainless Steel
Material      :      Stainless Steel
Maximum Operating Pressure      :      150 psi
Operating Temperature      :      300 deg F
  • Allows the hose to relax to it's natural rest position while allowing freedom of movement without adding torque stress at the point of connection
  • Simple design, low maintenance
  • FKM seal
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/DIXON_HS100SS_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/DIXON_HS075AL_Specification_Sheet.pdf
