DIXON B22 CPB-22

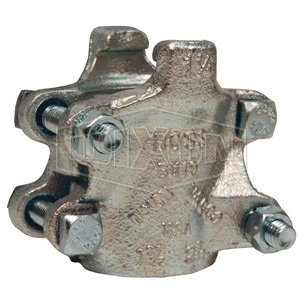

DIXON B22 4-Bolt Clamp, 1-1/2 in Nominal, 2 in Minimum Clamp Diameter, 2-14/64 in Maximum Clamp Diameter, Iron

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: CPB-22
  • MPN: B22
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON 4-Bolt Clamp, 1-1/2 in Nominal, Minimum Clamp Diameter: 2 in, Maximum Clamp Diameter: 2-14/64 in, Iron, Finish: Zinc-Plated, Bolt Locking Style, 4-1/8 in Length, 3-13/16 in Width, 450 deg F, 40 ft-lb Torque

Finish      :      Zinc-Plated
Length      :      4-1/8 in
Locking Style      :      Bolt
Material      :      Iron
Maximum Clamp Diameter      :      2-14/64 in
Minimum Clamp Diameter      :      2 in
Nominal Size      :      1-1/2 in
Temperature Rating      :      450 deg F
Torque Rating      :      40 ft-lb
Width      :      3-13/16 in
  • Four-bolt-type clamp with two gripping fingers and two clamp sections
  • Bolts in boss clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
  • Always tighten bolts to their specified torque value
  • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
