DIXON 10HBF10 QD10HBF10

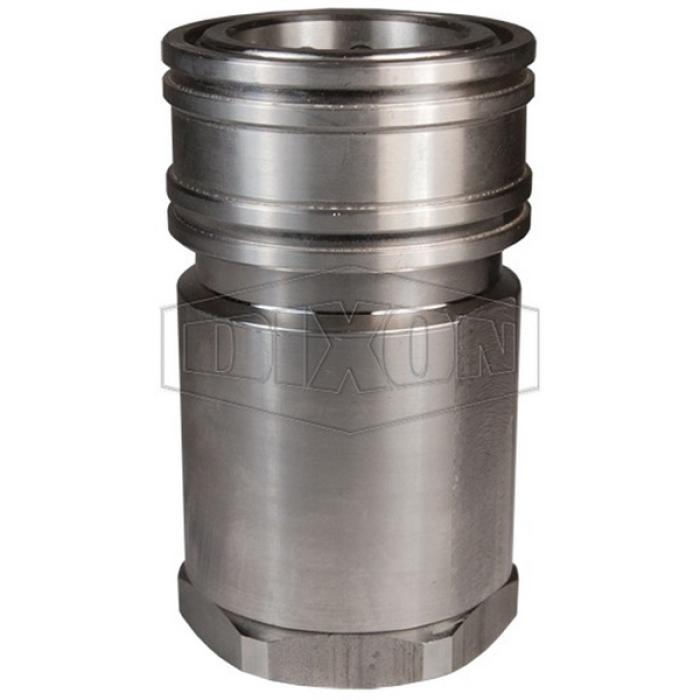

DIXON H Series 10HBF10 ISO-B High-Volume Interchange Coupler, 1-1/4 in Quick Disconnect x 1-1/4 in Female BSPP, Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QD10HBF10
  • MPN: 10HBF10
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON ISO-B High-Volume Interchange Coupler, Series: H, Fitting Type: Coupling, Connection Size 1: 1-1/4 in, Connection Type 1: Quick Disconnect, Connection Size 2: 1-1/4 in, Connection Type 2: Female BSPP, Material Construction: Steel, Chrome Trivalent-Plated, 1-1/4-11 Thread, 2-3/8 in Hex, Dimension Standards: ISO 7241 Series B, 4.43 in L x 2.6 in OD, Maximum Operating Pressure: 2500 psi, -40 to 250 deg F Operating

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Female BSPP
Connection Type      :      Quick-Disconnect|Female BSP
Dimension Standards      :      ISO 7241 Series B
Dimensions      :      4.43 in L x 2.6 in OD
Finish      :      Chrome Trivalent-Plated
Fitting Type      :      Coupling
Hex Size      :      2-3/8 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      2500 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      H
Thread Size      :      1-1/4-11
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion-resistant and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Nitrile (Buna-N) seals are standard
  • Redundant O-ring sealing system with Hytrel back-up ring
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip®/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
