COXREELS® C-L350-5012-F HSREEL-COX-C-L350-5012-F
  1. pin-int

COXREELS® C-L350-5012-F HSREEL-COX-C-L350-5012-F

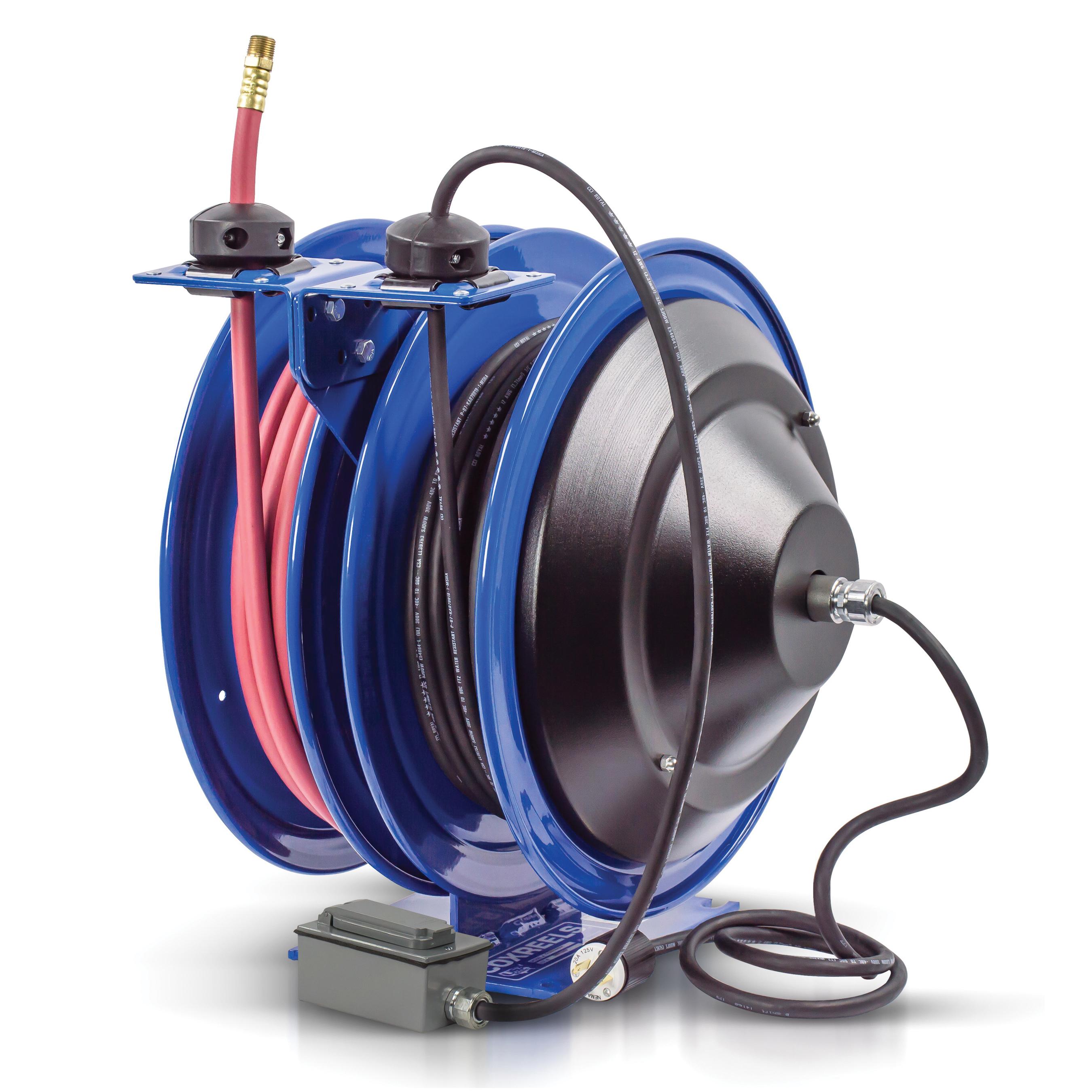

COXREELS® C Air-Electric Series C-L350-5012-F Cord Reel, 50 ft Hose, 3/8 in ID Hose, 17 in Dia Reel, 16 in W Reel

  • Manufacturer: Coxreels
  • Brand Name: COXREELS®
  • Part#: HSREEL-COX-C-L350-5012-F
  • MPN: C-L350-5012-F
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

COXREELS® C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations.

COXREELS® Cord Reel, C Air-Electric Series, 50 ft Hose, 3/8 in Hose Inside Diameter, 5/8 in OD Hose Fitting, NPT Swivel Hose Fitting, PVC Hose, 12 AWG Cord, 20 A, Ceiling, Floor, Vehicle, Wall Mounting, 17 in Reel Diameter, 16 in Reel Width, Steel Reel, Powder-Coated Reel, Additional Information: 8 x 9 in Base, 7 x 8 in Mounting Pattern, 18-5/8 in Reel Height, 300 psi Pressure Rating

Additional Information      :      8 x 9 in Base, 7 x 8 in Mounting Pattern, 18-5/8 in Reel Height, 300 psi Pressure Rating
Amperage Rating      :      20 A
Cord Gauge      :      12 AWG
Hose Capacity      :      50 ft
Hose Fitting Size      :      5/8 in OD
Hose Fitting Type      :      NPT Swivel
Hose Inside Diameter      :      3/8 in
Hose Material      :      PVC
Mounting Type      :      Ceiling, Floor, Vehicle, Wall
Reel Diameter      :      17 in
Reel Finish      :      Powder-Coated
Reel Material      :      Steel
Reel Width      :      16 in
Series      :      C Air-Electric Series
  • Swivel and lead cable - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and easy hose installation
  • External, easily accessible, heavy gauge CPC™ powder-coated steel components cover for fast and simple slip ring routine maintenance
  • Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
  • Precision coil spring factory tuned and matched to application for longest life cycle and performance
  • CNC spun discs - heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • 1/4 in steel base - sturdy single expanded pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
  • Compact two reel assembly for air/electric applications, each reel operates independently
  • Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, sturdy permanently lubricated precision bearings, 5 ft lead cable and grounding plug and duplex GFCI metal industrial receptacle
  • USA Made - quality and support - we take great pride in designing, building and supplying one of the world’s finest reels made right here in the USA
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/COXREELS_C_L350_5012_A_Catalog.pdf
  • linkVideo Link https://youtu.be/I_93xdw6i5k
  • linkVideo Link https://youtu.be/e5gDjGrQCk4
