COXREELS® 1125-4-100-ED HSREEL-COX-1125-4-100-ED
  1. pin-int

COXREELS® 1125-4-100-ED HSREEL-COX-1125-4-100-ED

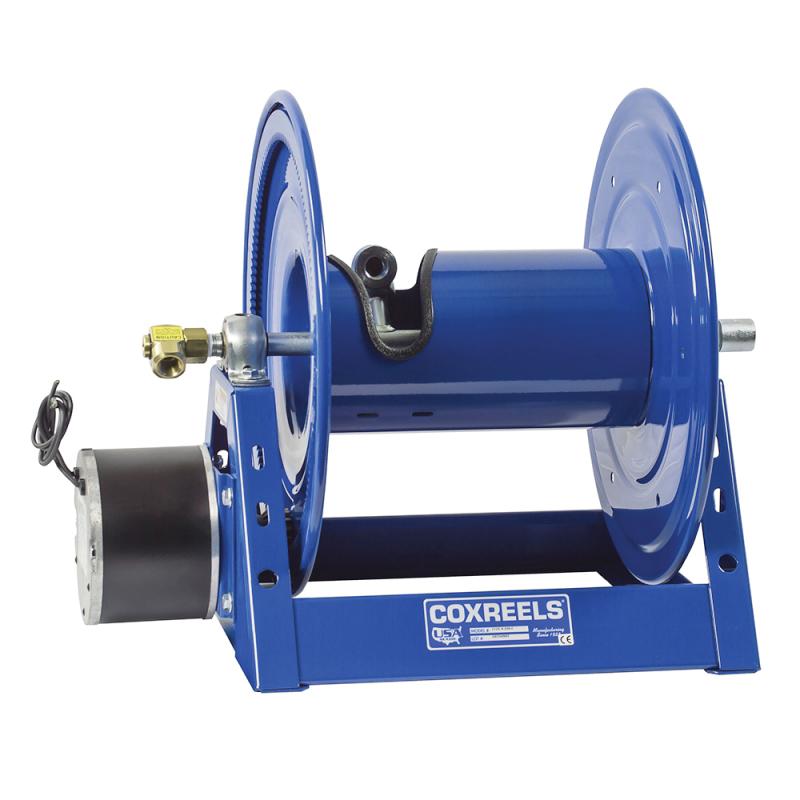

COXREELS® 1125-4-100-ED Motorized Hose Reel, 100 ft Hose, 1/2 in ID x 7/8 in OD Dia Hose, Medium Pressure Hose, 12 V

  • Manufacturer: Coxreels
  • Brand Name: COXREELS®
  • Part#: HSREEL-COX-1125-4-100-ED
  • MPN: 1125-4-100-ED
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

COXREELS® 1125 Series motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one-piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

COXREELS® Motorized Hose Reel, Series: 1125 Series, 100 ft Hose, 1/2 in ID x 7/8 in OD Hose Dia, Medium Pressure Hose, 1/2 in Inlet, 1/2 in Outlet, FNPT Swivel Connection Type, 12 V, 17-5/8 in Reel Dia, 6 in Reel Width, Pin Locking Style, Steel, Powder-Coated, 3000 psi, Base Mount, 17-5/8 in L x 19-3/4 in W x 19-1/4 in H, Additional Information: 16 in L x 11.38 in W Base, NBR Seal, 1/2 hp Explosion-Proof Reversible Electric Motor

Additional Information      :      16 in L x 11.38 in W Base, NBR Seal, 1/2 hp Explosion-Proof Reversible Electric Motor
Connection Type      :      FNPT Swivel
Dimensions      :      17-5/8 in L x 19-3/4 in W x 19-1/4 in H
Finish      :      Powder-Coated
Hose Capacity      :      100 ft
Hose Diameter      :      1/2 in ID x 7/8 in OD
Hose Type      :      Medium Pressure
Inlet Size      :      1/2 in
Locking Style      :      Pin
Material      :      Steel
Mounting Type      :      Base
Outlet Size      :      1/2 in
Pressure Rating      :      3000 psi
Reel Diameter      :      17-5/8 in
Reel Width      :      6 in
Series      :      1125 Series
Voltage Rating      :      12 V
  • Professional grade heavy-duty steel construction
  • Rolled edges and ribbed discs provide strength and safety
  • Machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation, no need to remove the reel from its mount
  • Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
  • Sturdy one-piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure, mounting pattern located in the steel base for easy reel installation and detachment
  • Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder-coat finish and reliable direct gear drive for smooth and quiet retraction - no chain
  • Made in USA
  • Less hose
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/COXREELS_E_HP_350_Catalog.pdf
  • linkVideo Link 1 https://youtu.be/sRARl0erqnM
  • linkVideo Link https://youtu.be/8QZheFZX7h4
