COXREELS® 112-3-150-CM HSREEL-COX-112-3-150-CM

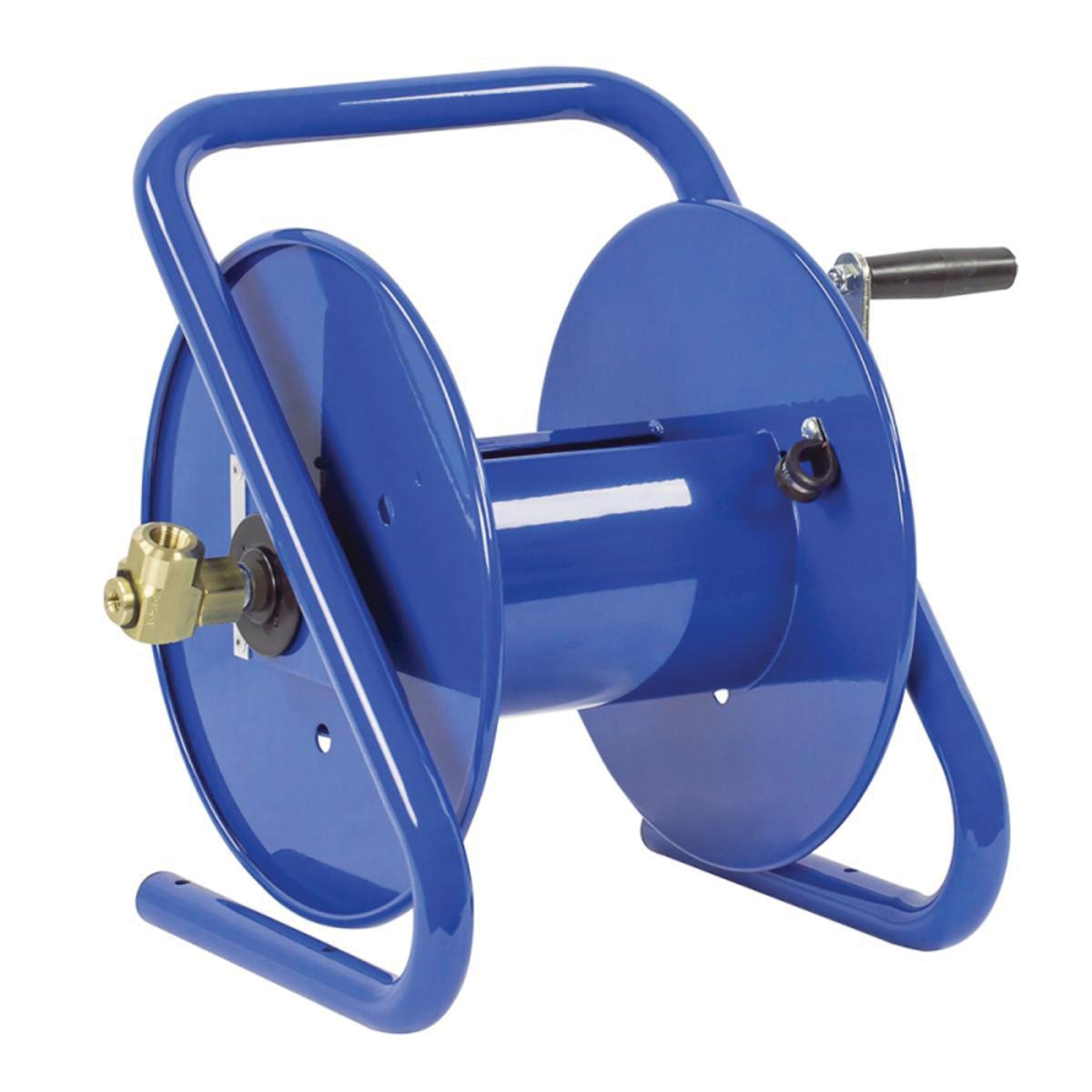

COXREELS® 112-3-150-CM Hand Crank Storage Hose Reel, 150 ft Hose, 3/8 in ID x 5/8 in OD Dia Hose, High Pressure Hose

  • Manufacturer: Coxreels
  • Brand Name: COXREELS®
  • Part#: HSREEL-COX-112-3-150-CM
  • MPN: 112-3-150-CM
  • Qty. Interval: 1
  • loading Available at NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

COXREELS® CM Series "caddy-mount" hand crank hose reels offer lightweight, compact portability for long lengths of hose. Eliminate the task of manually coiling and uncoiling hose and easily transport it to the job site with its convenient carrying handle. High pressure applications are no problem with a 4000 psi rating. Also, a 4 ft inlet hose with 3/4 in female fitting and male garden adapter is available with this series for use with garden hose.

COXREELS® Hand Crank Storage Hose Reel, Series: CM Series, 150 ft Hose, 3/8 in ID x 5/8 in OD Hose Dia, High Pressure Hose, 3/8 in Inlet, 3/8 in Outlet, NPT Swivel Connection Type, 12-1/2 in Reel Width, Steel, Powder-Coated, 4000 psi, Caddy Mount, 13-1/8 in L x 23 in W x 14-3/4 in H, Additional Information: 10-1/2 in L x 16 in W Base, NBR Seal, Front Hand Bevel Geared Crank

Additional Information      :      10-1/2 in L x 16 in W Base, NBR Seal, Front Hand Bevel Geared Crank
Connection Type      :      NPT Swivel
Dimensions      :      13-1/8 in L x 23 in W x 14-3/4 in H
Finish      :      Powder-Coated
Hose Capacity      :      150 ft
Hose Diameter      :      3/8 in ID x 5/8 in OD
Hose Type      :      High Pressure
Inlet Size      :      3/8 in
Material      :      Steel
Mounting Type      :      Caddy
Outlet Size      :      3/8 in
Pressure Rating      :      4000 psi
Reel Width      :      12-1/2 in
Series      :      CM Series
  • Professional grade heavy-duty steel construction
  • Rolled edges and ribbed discs provide strength and safety
  • Machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation, no need to remove the reel from its mount
  • High quality one-piece 1 in steel tube frame structure, base has holes for temporary or permanent installation
  • Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage
  • High quality steel construction provides superior strength and durability for heavy-duty applications in commercial and industrial settings
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder-coat finish, hose control bar and direct hand crank for easy mechanical retraction
  • Made in USA
  • Less hose
