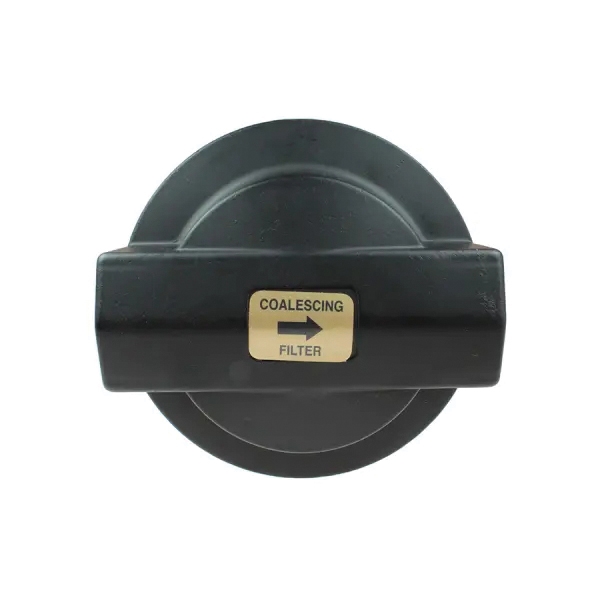

Coilhose® Heavy-Duty 88 Series 8922 8922D Coalescing Filter, 6 in OAH, 1/4 in Port, NPT Connection, 150 psi Pressure
NASHVILLE, TN
Available at All Branches
Heavy-duty 88 Series coalescing filters will remove 99% of solids and fluids down to 0.01 um. 88 Series coalescing filters are equipped standard with polycarbonate bowls. On both filter models, bowl guards are standard on 3/4 in and 1 in sizes and optional on 1/4 in, 3/8 in and 1/2 in sizes.
Coilhose® Coalescing Filter, Series: Heavy-Duty 88 Series, Model: 8922, 1/4 in, NPT Connection Type, 42 cfm, 150 psi, Bronze Filter, 0.3 um, 4 oz Bowl, 120 deg F, Polycarbonate Bowl, 3 in Dia, 6 in Overall Height, Additional Information: Die Cast Aluminum Body
| Additional Information | : | Die Cast Aluminum Body |
| Bowl Capacity | : | 4 oz |
| Bowl Material | : | Polycarbonate |
| Connection Type | : | NPT |
| Diameter | : | 3 in |
| Filter Material | : | Bronze |
| Filter Rating | : | 0.3 um |
| Flow Rate | : | 42 cfm |
| Model | : | 8922 |
| Overall Height | : | 6 in |
| Port Size | : | 1/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | Heavy-Duty 88 Series |
| Temperature Rating | : | 120 deg F |
