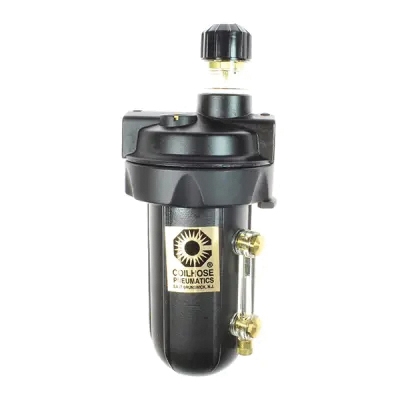

Coilhose® Heavy-Duty 88 Series 8843M Lubricator With Die Cast Aluminum Bowl, Sightglass, 7 in OAH, 3/8 in Port, 30 cfm
NASHVILLE, TN
Available at All Branches
Heavy-duty Series lubricators provide a method of lubricating the entire compressed air system, eliminating the need to add oil to each tool individually. The adjustable cap allows the oil delivery rate to be locked in. For added convenience, additional oil can be added without requiring depressurization. 88 Series lubricators are equipped standard with polycarbonate bowls.
Coilhose® Lubricator, Series: Heavy-Duty 88 Series, 3/8 in, NPT Connection Type, 30 cfm, 250 psi, 4 oz Oil, Knob Adjustment, Aluminum Body, 250 deg F, 3 in Overall Width, 7 in Overall Height
| Adjustment Type | : | Knob |
| Body Material | : | Aluminum |
| Connection Type | : | NPT |
| Flow Rate | : | 30 cfm |
| Oil Capacity | : | 4 oz |
| Overall Height | : | 7 in |
| Overall Width | : | 3 in |
| Port Size | : | 3/8 in |
| Pressure Rating | : | 250 psi |
| Series | : | Heavy-Duty 88 Series |
| Temperature Rating | : | 250 deg F |
Instruction/Installation Manual
