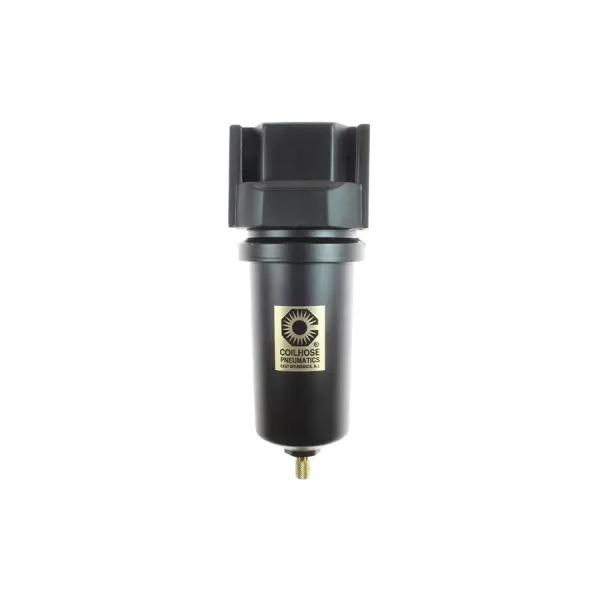

Coilhose® 27C4 27C4-DM Modular Coalescing Filter, 7-1/2 in OAH, 1/2 in Port, NPT Connection, 250 psi Pressure, Zinc Bowl
Available at NASHVILLE, TN
Available at All Branches
The 27 Series is a modular design that aids in installation flexibility and servicing. The 27 Series coalescing filter provides the ability to remove 99.97% of solids and fluids down to 0.3 um. Coalescing filters are perfect for precision equipment that absolutely must have the cleanest air supply possible. Standard equipped with a plastic bowl and bowl guard.
Coilhose® Modular Coalescing Filter, Series: 27 Series, Model: 27C4, 1/2 in, NPT Connection Type, 30 scfm, 250 psi, Borosilicate Fiber/Felt Filter, 0.3 um, 8.5 oz Bowl, 250 deg F, Zinc Bowl, 2-3/4 in Dia, 7-1/2 in Overall Height, Additional Information: Die Cast Aluminum Body
| Additional Information | : | Die Cast Aluminum Body |
| Bowl Capacity | : | 8.5 oz |
| Bowl Material | : | Zinc |
| Connection Type | : | NPT |
| Diameter | : | 2-3/4 in |
| Filter Material | : | Borosilicate Fiber/Felt |
| Filter Rating | : | 0.3 um |
| Flow Rate | : | 30 scfm |
| Model | : | 27C4 |
| Overall Height | : | 7-1/2 in |
| Port Size | : | 1/2 in |
| Pressure Rating | : | 250 psi |
| Series | : | 27 Series |
| Temperature Rating | : | 250 deg F |
Instruction/Installation Manual
