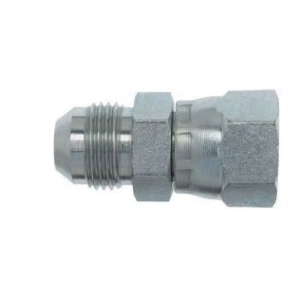

BRENNAN 6504-12-12-SS Straight Adapter, 3/4 in Male SAE 37 deg JIC x 3/4 in Female SAE 37 deg JIC Swivel
NASHVILLE, TN
Available at All Branches
BRENNAN Straight Adapter, Series: 6504, Fitting Type: Adapter, Connection Size 1: 3/4 in, Connection Type 1: Male SAE 37 deg JIC, Connection Size 2: 3/4 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Material Construction: Stainless Steel, 1-1/16-12 Thread, 1-1/4 x 1-1/8 in Hex, 2.33 in L, Maximum Operating Pressure: 5000 psi
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Male SAE 37 deg JIC |
| Connection Type 2 | : | Female SAE 37 deg JIC Swivel |
| Connection Type | : | Male JIC|Female JIC Swivel |
| Dimensions | : | 2.33 in L |
| Fitting Type | : | Adapter |
| Hex Size | : | 1-1/4 x 1-1/8 in |
| Material Construction | : | Stainless Steel |
| Material | : | Stainless Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Series | : | 6504 |
| Thread Size | : | 1-1/16-12 |
