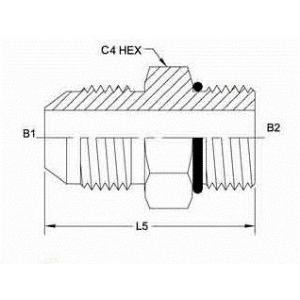

BRENNAN 6400-O Series 6400-04-03-O Straight Adapter, 3/16 in Male SAE ORB x 1/4 in Male SAE 37 deg JIC Flared, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN Straight Adapter, Adapter Fitting, 3/16 in Connection Size 1, Connection Type 1: Male SAE ORB, 1/4 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC Flared, Male SAE ORB|Male JIC Connection, Steel, Material Construction: Steel, 3/8-24 x 7/16-20 Thread, 0.562 in Hex, Dimension Standards: MS 51525, SAE 070120, 1.17 in L, 7500 psi Maximum Operating Pressure
| Connection Size 1 | : | 3/16 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Male SAE ORB |
| Connection Type 2 | : | Male SAE 37 deg JIC Flared |
| Connection Type | : | Male SAE ORB|Male JIC |
| Dimension Standards | : | MS 51525, SAE 070120 |
| Dimensions | : | 1.17 in L |
| Fitting Type | : | Adapter |
| Hex Size | : | 0.562 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 7500 psi |
| Series | : | 6400-O Series |
| Thread Size | : | 3/8-24 x 7/16-20 |
