BRENNAN 1928-61-24-24 HY24FLG BLK-24FP-61-FLAT
  1. pin-int

BRENNAN 1928-61-24-24 HY24FLG BLK-24FP-61-FLAT

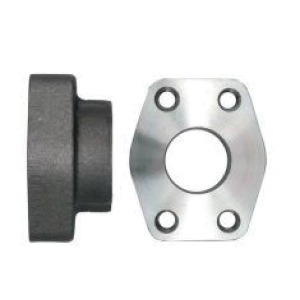

BRENNAN 1928-61-24-24 Port Block, 1-1/2 in SAE Code 61 Flanged x 1-1/2 in NPTF, Steel

  • Manufacturer: Brennan Industries
  • Brand Name: BRENNAN
  • Part#: HY24FLG BLK-24FP-61-FLAT
  • MPN: 1928-61-24-24
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

BRENNAN Port Block, Series: 1928-61, Fitting Type: Port Block, Connection Size 1: 1-1/2 in, Connection Type 1: SAE Code 61 Flanged, Connection Size 2: 1-1/2 in, Connection Type 2: NPTF, Connection Type: Flanged|NPT, Steel, Material Construction: Steel, 1-1/2-11-1/2 Thread, 3.81 in L x 3.25 in W x 1.75 in H

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      SAE Code 61 Flanged
Connection Type 2      :      NPTF
Connection Type      :      Flanged|NPT
Dimensions      :      3.81 in L x 3.25 in W x 1.75 in H
Fitting Type      :      Port Block
Material Construction      :      Steel
Material      :      Steel
Series      :      1928-61 Series
Thread Size      :      1-1/2-11-1/2
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_1700-12-10_Catalog.pdf
